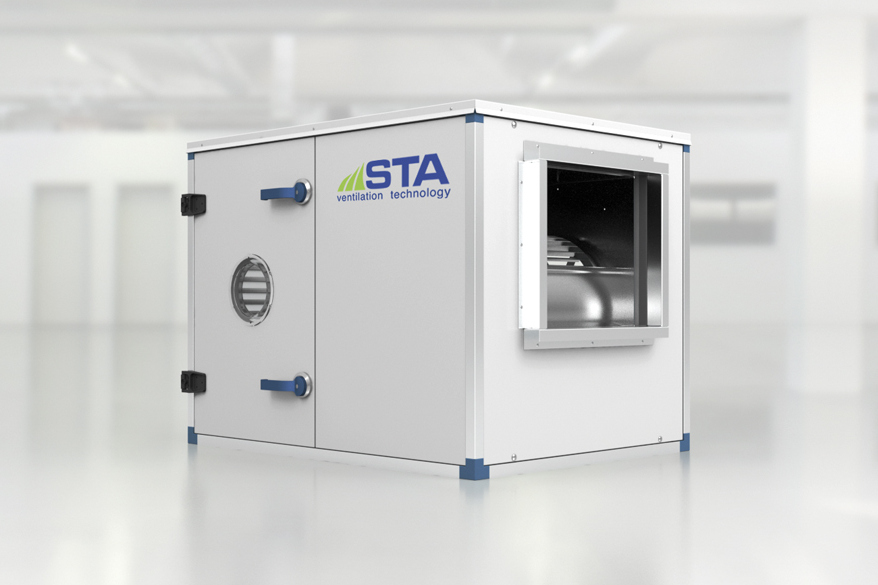

EBP air exhausters, with belt and pulley drive system, are units fit for solving all the problems related to the room forced air exhaust.
Their quietness, stoutness and accurate manufacturing enable their installation even inside the area to be served. Furthermore the high available static pressure makes them fit for ducted air supply or exhaust system.
- Range of 5 sizes
- Air flow from 1.000 m3/h to 18.000 m3/h
- External static pressure from 50 Pa to 400 Pa
- Power consumption 0.35 kW to 5.5 kW
- Power supply 400V-3ph-50Hz
- Fully material quality customizable
- Large optional available
STANDARD COMPONENTS
- Aluminium extruded profiles framework and galvanised steel single skin panels with internal acoustic insulating
- DIDW forward centrifugal fan, statically and dinamically balanced. Belt and pulley drive system
- 4 poles electric motor 400/3/50 IP 54 protection class, insulation class F
- Motor pulley with variable pitch
- Fan/motor base frame with rubber vibration dampers
PRICED ACCESSORIES
- ouble poles, motr, 4/6 or 4/8, 400/3/50
- Inlet flexible connection
- Perforated inlet panel
- Aluminium or galvanised steel inlet dumper
- Supply flexible connection
- Aluminium or galvanised steel supply damper
- Aluminium or galvanised steel supply gravity damper
- ON/OFF 230V actuator with or without spring internally
- Weatherproof design (roof)
- Weatherproof design (supply hood)
- Damper hand drive
